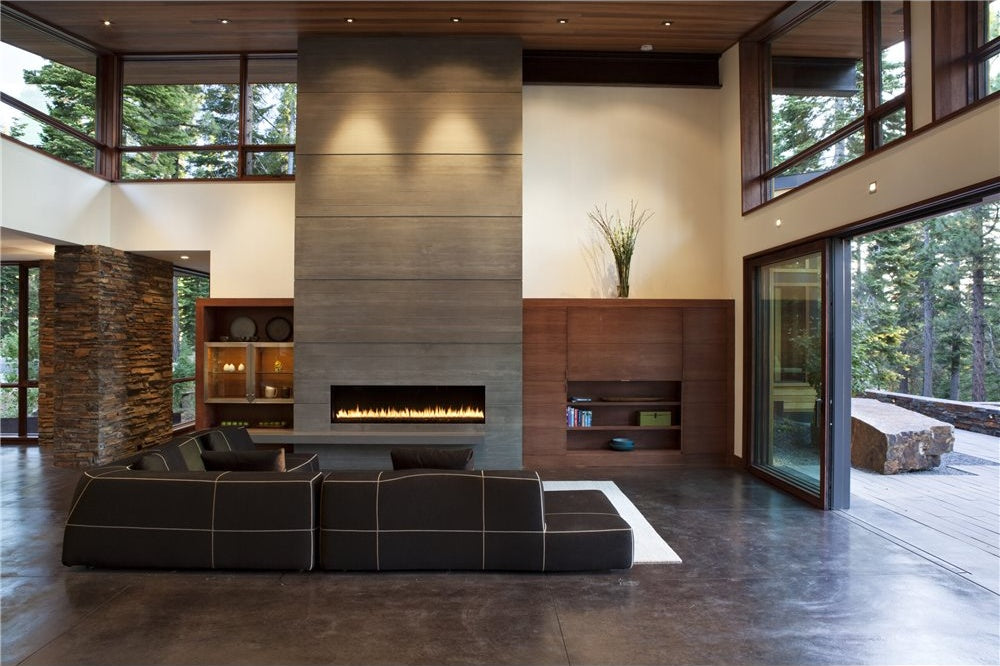

Montigo Exemplar C-View Single-Sided Linear Fireplace, 61" View

The Montigo Exemplar R520L opens with a number worth pausing on: 61 1/8 inches of unobstructed glass. That is a lot of fire. The panoramic glass opening pairs with an 18 1/8-inch viewing height to deliver a low, wide flame ribbon that reads beautifully across large rooms — the proportions are deliberate, not accidental.

Behind that glass, a linear burner with included Ice fireglass creates the kind of clean, contemporary flame bed that does not require any further justification. The fireglass catches and scatters light in ways plain black media never could, and it ships standard — no upcharge required. Prefer a different look? Speckled stones, driftwood, and additional glass media options are available if your design direction calls for it.

At 65,000 BTU/H on liquid propane, the R520L is not decorative in the apologetic sense. It is a legitimate heat source built into a package that happens to look exceptional. Honeywell Hot Surface Ignition handles the starting duties reliably, and the included power vent control box manages airflow without requiring you to think too hard about it.

The direct vent power vented system uses a 5-inch inner vent and 10-inch outer vent. Maximum vent run reaches 100 feet, which gives architects and designers meaningful flexibility in positioning the unit relative to the exterior termination point. The R520L is compatible with Montigo's 300-Series power vent options: the PVHEX510-300 for standard wall mount, the PVHFL510-300 for flush wall mount, and the PVVEX510-300 for vertical or roof terminations. A dedicated power vent motor is required for operation, and Montigo specifies that only Montigo-approved motors should be used to maintain warranty coverage — so plan accordingly when speccing the full installation.

Framing dimensions are 77 inches wide, 45 inches tall, and 23 3/4 inches deep. These are the numbers your builder and finish carpenter will need; share them early. The tempered glass front is standard equipment, and an optional remote control on/off is available for those who prefer not to crouch down to operate a fireplace they paid this much for.

The R520L is a considered piece of residential hearth engineering — wide enough to anchor a wall, efficient enough to heat a room, and finished with enough design intelligence that the media bed and glass front feel coordinated rather than afterthought.

• 61 1/8" wide × 18 1/8" tall glass opening for a wide, cinematic flame view
• 65,000 BTU/H linear burner on liquid propane
• Honeywell Hot Surface Ignition (HSI) for consistent, reliable starts
• Ice fireglass included as standard — no upgrade fee required
• Power direct vent system with 5" inner / 10" outer vent configuration
• Up to 100-foot maximum vent run for flexible installation positioning
• Compatible with Montigo 300-Series power vents: wall, flush wall, or vertical/roof mount
• Dedicated power vent control box included standard
• Framing dimensions: 77" W × 45" H × 23 3/4" D
• Tempered glass front included standard
• Optional media upgrades: speckled stones, driftwood, or additional glass media
• Optional remote control on/off available
• Use of non-Montigo power vent motors voids warranty — compatible motors specified
