Montigo DelRay Square 38" Direct Vent Gas Fireplace, Satin Black

The Montigo DelRay Square 38" (model DRSQ38NI-2) is built around a genuinely square firebox — 38" wide by 38" tall — which gives it a proportional, architectural presence that a standard landscape unit simply cannot replicate. The glass opening measures 33 11/16" wide by 22 7/8" tall, framed cleanly in a satin black painted finish that keeps attention on the fire rather than the hardware.

At the heart of the unit is Montigo's concealed universal burner, rated at 24,000 BTU on natural gas (19,500 BTU on propane). What makes this burner genuinely useful is its flexibility: it accommodates traditional logsets — Split Oak, Birch, or Driftwood — as well as contemporary media including speckled stones and glass media, all without requiring a burner change. Switching the look of your fireplace becomes a matter of preference, not a service call. If your installation calls for propane, the GCA021 conversion kit handles the transition; if your venting situation calls for 4"/7" pipe rather than the standard 5"/8" direct vent configuration, a DRSQCOL47 reducing collar adapts accordingly.

The ignition system is Proflame 2 IPI — Intermittent Pilot Ignition — meaning the pilot lights on demand rather than burning continuously. The included multi-function remote handles Hi-Lo flame adjustment and fan control from across the room, and a battery backup ensures the system remains operable during a power outage. Halogen downlighting and a micro mesh safety screen are included as standard, not afterthoughts.

Installation framing dimensions are 40" wide by 44 7/16" tall by 18" deep, with the unit itself weighing 120 lbs. It carries approval for elevations up to 4,500 feet and is certified for mobile home installation. Efficiency is rated at 65% on natural gas and 61.5% on propane.

For those who prefer connected control, an optional WiFi phone app module integrates with the Proflame 2 system. Optional heat management kits, adjustable trim kits, and the Invisimesh screen are also available to tailor the installation to the specific surround and room requirements. Media is required to complete installation; glass media installations require a minimum of 5 lbs. This unit is approved for residential indoor use only.

• 38" x 38" square firebox with 33 11/16" x 22 7/8" glass opening — satin black painted finish
• 24,000 BTU max output (natural gas) / 19,500 BTU (propane) via concealed universal burner
• Proflame 2 IPI ignition — pilot lights on demand, with battery backup for outages

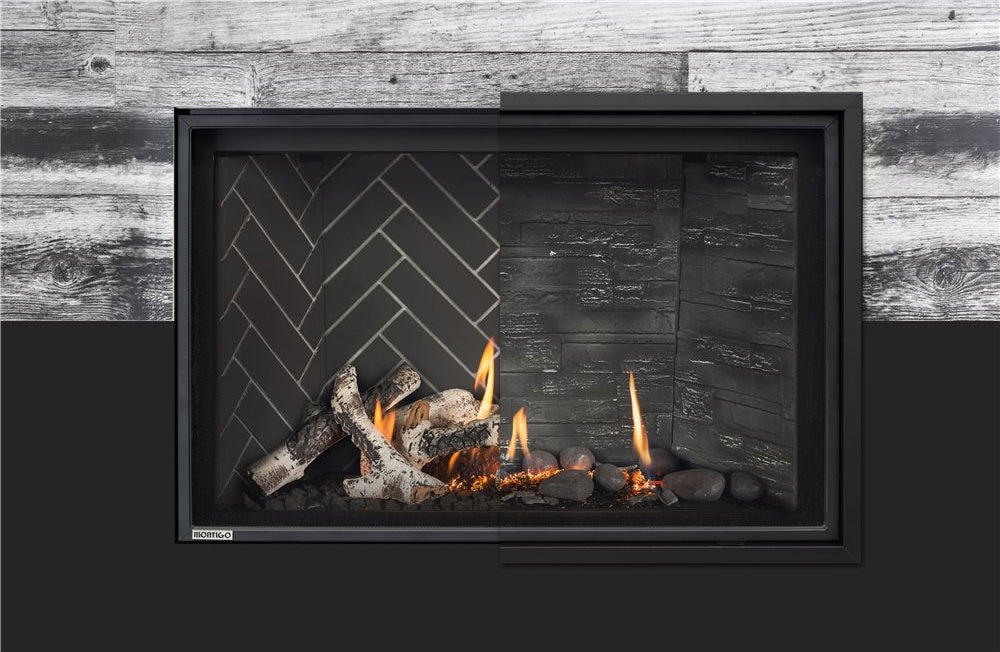

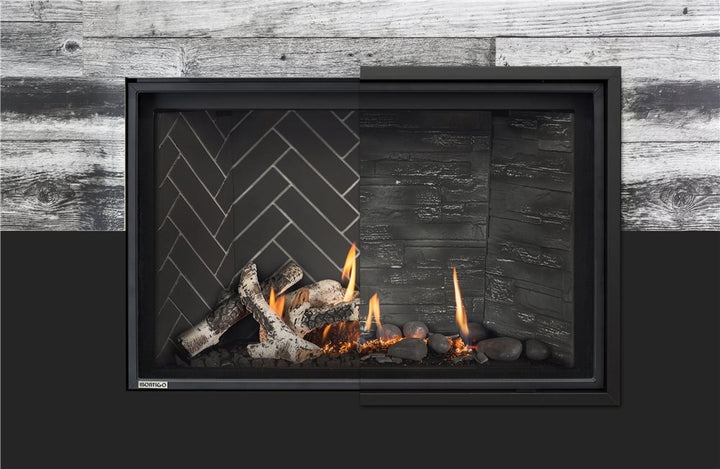

• Universal burner accepts traditional logsets (Split Oak, Birch, Driftwood) or contemporary media without a burner swap
• Natural gas standard; propane-convertible with GCA021 conversion kit
• 5"/8" direct vent configuration; adaptable to 4"/7" with DRSQCOL47 reducing collar
• Multi-function remote with Hi-Lo flame control and remote-controlled fans included
• Halogen downlighting and micro mesh safety screen standard
• Mobile home certified; approved for installations up to 4,500 ft elevation
• Optional WiFi app control, Invisimesh screen, heat management kits, and adjustable trim kits available
• Framing rough opening: 40" W x 44 7/16" H x 18" D; unit weight: 120 lbs
• Efficiency: 65% (natural gas) / 61.5% (propane)
