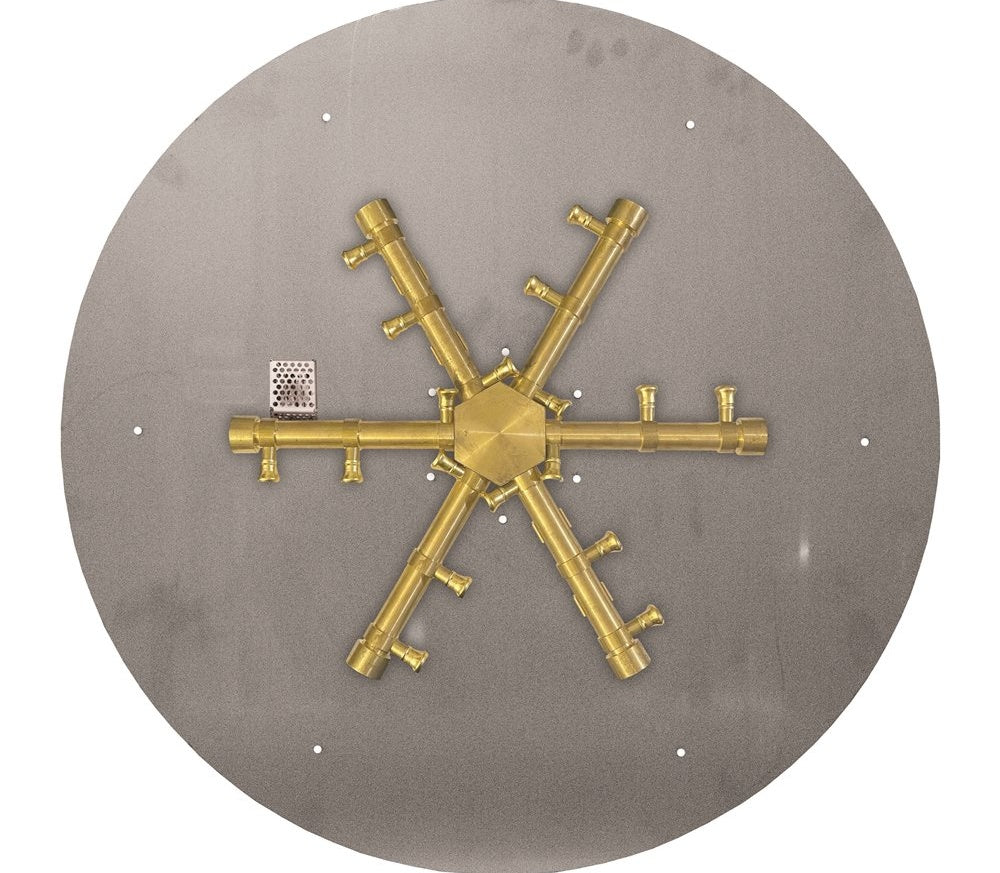

Firegear 29" Round Flat Pan Fire Pit with 21" Pro Series Brass Spur Burner

The Firegear 29-inch Round Flat Pan Fire Pit system is built around a 21-inch Pro Series Brass Spur burner capable of 175,000 BTU — enough output to make even the most ambitious outdoor gatherings genuinely warm rather than aspirationally warm. The burner pan itself is fabricated from 304 stainless steel, a grade known for its corrosion resistance and long-term structural integrity in outdoor installations.

Ignition is handled by a TPSI (Thermocouple Piloted Safety Ignition) system paired with a battery-powered spark igniter. The thermocouple acts as a continuous safety check — if the flame goes out unexpectedly, gas flow stops automatically. The pilot tubing and thermocouple run 48 inches, with pilot tubing extending a full 120 inches, giving installers meaningful flexibility in routing components within the fire feature structure.

Installation requires a 27-inch opening diameter, with a minimum clearance height above ground of 8 inches and a maximum distance to the mounting plate of 36 inches. Proper ventilation is essential: the system calls for 18 square inches of ventilation to operate safely and correctly. At 33 pounds, this is a substantial assembly built to stay put once it's in place.

This system is part of Firegear's FPB Pro Spur Burners Flat Pan Fire Pit family with TPSI, which means it's designed to work in concert with compatible TPSI components and accessories. For installations where a finished control panel interface makes sense, the optional PAVER-CP-MT control plate is available for mounting the control panel cleanly into the surrounding structure. And for those who decide later that liquid propane is the preferred fuel source, an LP conversion kit is available separately — the orifice size on the natural gas configuration is #61 (0.039 inches) for reference when planning any future conversion.

This is a professional-grade fire pit burner system designed for builders, landscapers, and homeowners who want a permanent, high-output fire feature that performs reliably season after season — not something that looks impressive in a catalog photo and disappoints at the first dinner party of the year.

• 29-inch round flat pan fabricated from 304 stainless steel
• 21-inch Pro Series Brass Spur burner with 175,000 BTU output
• TPSI (Thermocouple Piloted Safety Ignition) with battery-powered spark igniter
• Automatic gas shutoff if pilot flame is extinguished
• 48-inch pilot tubing and thermocouple length; 120-inch pilot tubing
• Requires 27-inch install opening diameter
• Minimum 8 inches height above ground; maximum 36 inches to mounting plate
• 18 square inches of ventilation required
• Natural gas configuration; LP conversion kit available separately
• Natural gas orifice size: #61 (0.039 inches)
• Compatible with optional PAVER-CP-MT control panel mounting plate
• Part of Firegear's FPB Pro Spur Burners Flat Pan TPSI system family
• Item weight: 33 lbs
