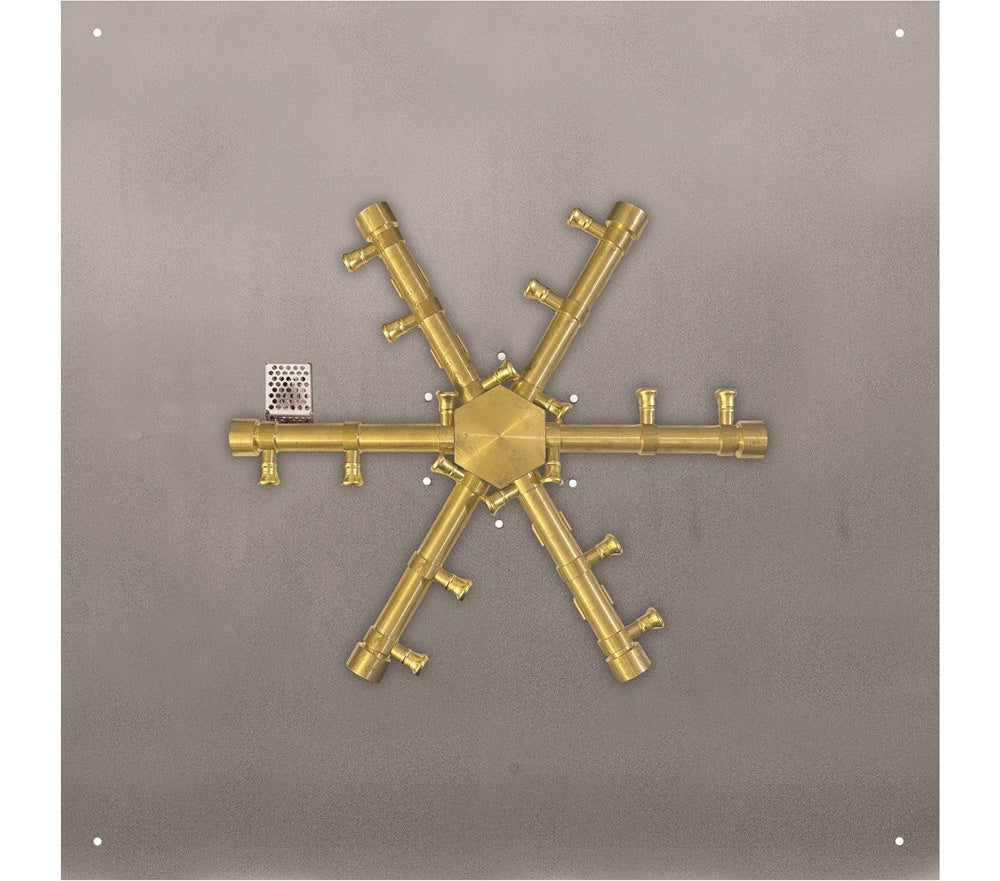

Firegear 25" Square Flat Pan Fire Pit Burner System, 304 Stainless Steel

The Firegear 25-inch Square Flat Pan Burner System delivers 175,000 BTU through a 21-inch Pro Series Brass Spur burner — the kind of heat output that commands attention without requiring an explanation. Built from 304 stainless steel, the pan measures 25 inches square with an 8-inch depth, designed specifically for integration into non-combustible enclosures with a minimum opening of 23 inches and a maximum of 25.5 inches.

Everything you need to build a serious fire feature is included in a single, cohesive system. The TPSI (Thermocouple Piloted Safety Ignition) with battery-powered spark igniter handles lighting duty without a separate electrical hookup, and the 48-inch pilot tubing and thermocouple leads give your installer meaningful flexibility when routing components inside the enclosure. A #61 (0.039) injector is sized specifically for natural gas — and it's worth noting upfront that this unit is not convertible to propane, so confirm your fuel source before you buy.

Installation follows NFPA 54 standards. Clearances are clearly defined: 36 inches to combustibles on the sides, 120 inches overhead, and a minimum of 18 square inches of cross ventilation required per side. These aren't suggestions — they're the engineering parameters that make the system safe and code-compliant. The optional PAVER-CP-MT control plate is available separately for a clean, finished mounting solution at the enclosure face.

At 28 pounds, the pan is substantial without being unwieldy. The 304 stainless construction resists the thermal cycling and outdoor exposure that would age lesser materials quickly. This is a burner system designed to be built into something permanent — a custom stone table, a concrete outdoor hearth, a masonry fire pit surround — and to perform reliably for years once it's there.

If you're specifying a built-in fire feature and need a high-output, square-format burner that arrives as a complete, install-ready assembly, this Firegear system is engineered for exactly that application. Consult a licensed gas professional for line sizing and final installation per local codes.

• 175,000 BTU natural gas output via 21-inch Pro Series Brass Spur burner
• 25-inch square flat pan constructed from durable 304 stainless steel, 8-inch depth
• TPSI ignition with battery-powered spark igniter — no external electrical connection required
• 48-inch pilot tubing and thermocouple leads for flexible in-enclosure routing
• Fits enclosure openings from 23 inches (minimum) to 25.5 inches (maximum)
• Requires 36-inch side clearance and 120-inch overhead clearance to combustibles
• Minimum 18 sq. in. cross ventilation required per side — enclosure must be non-combustible
• #61 (0.039) injector sized for natural gas; not convertible to propane
• Compatible with optional PAVER-CP-MT control plate for finished enclosure mounting
• Installation per NFPA 54; professional gas line installation required
• Weighs 28 lbs — substantial construction, manageable installation
