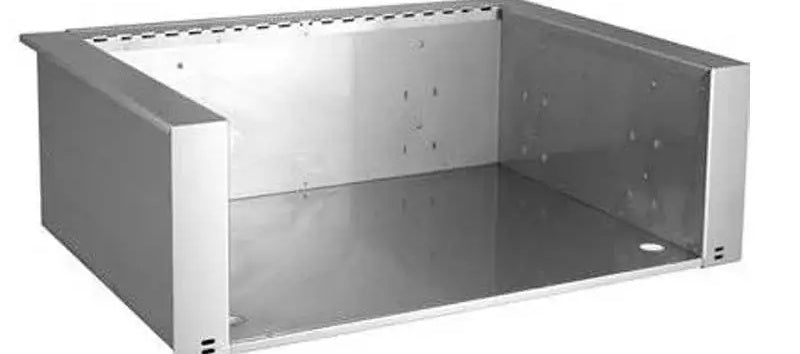

Fire Magic Insulating Liner for Power Burners, 304 Stainless Steel

Built from 304 stainless steel and arriving pre-assembled, the Fire Magic Insulating Liner (SKU 3278-52) is the component that lets you install a Fire Magic Power Burner or Double Searing Station into a combustible enclosure — provided you're pairing it with a non-combustible countertop. It's not glamorous, but neither is a failed inspection.

Compatibility is specific and worth noting: this liner is engineered for 2020 and newer Fire Magic Power Burners and Double Searing Stations across the Echelon Diamond, Aurora, and Classic lines. If your unit predates 2020 or falls outside those series, this is not the liner you're looking for.

The cutout dimensions are precise by design. You're working with a 23" side-to-side cutout, a 20 7/8" front-to-back cutout, a 12 1/4" countertop-to-unit-bottom cutout, and a liner flange width cutout of 24 1/8". Planning your enclosure around these numbers before breaking out the saw is strongly advised — measure twice, cut once is cliché because it's correct.

At 38 pounds, the liner has the kind of substantial feel that's appropriate for something tasked with thermal insulation duty in a permanent outdoor kitchen installation. The pre-assembled construction means there's no puzzling over components on installation day; it arrives ready to go into the enclosure.

If you're building a custom outdoor kitchen with a combustible frame and want to run a compatible Fire Magic high-output burner without compromising safety or voiding your warranty, this liner is the specification your build requires. It's the detail that makes the difference between doing the job and doing the job correctly.

• 304 stainless steel construction for durability in outdoor installations
• Arrives pre-assembled — no on-site assembly required
• Compatible with 2020 and newer Fire Magic Power Burners and Double Searing Stations
• Fits Echelon Diamond, Aurora, and Classic power burner and double searing station models
• Enables installation into combustible enclosures when used with non-combustible countertops
• Side-to-side cutout: 23"
• Front-to-back cutout: 20 7/8"
• Countertop to unit bottom cutout: 12 1/4"
• Liner flange width cutout: 24 1/8"
• Item weight: 38 lbs
