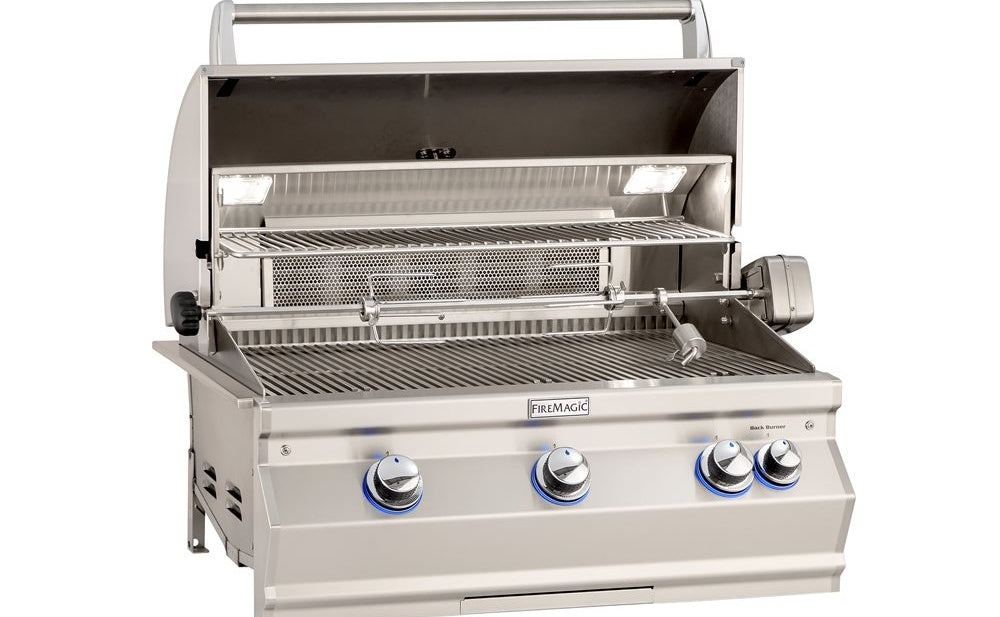

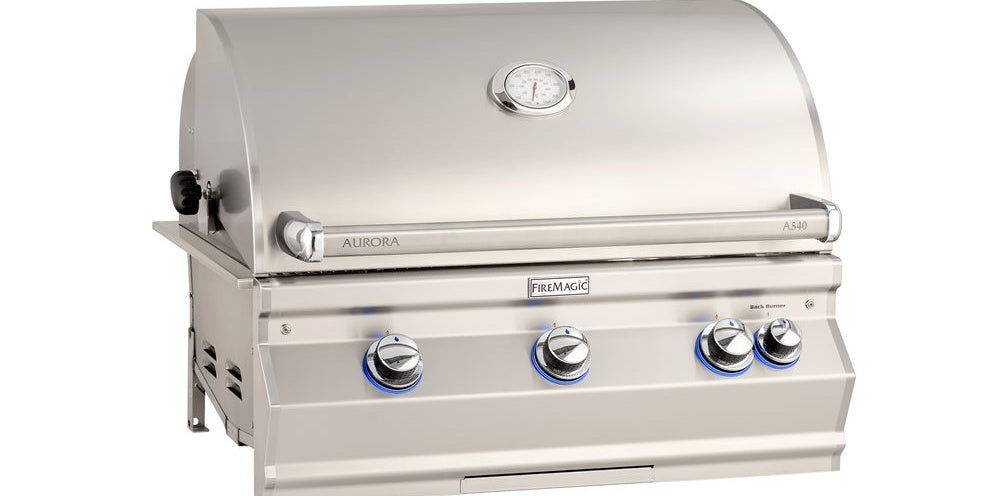

Fire Magic Aurora A540I Built-In Gas Grill, 30-Inch, 304 Stainless Steel

The Fire Magic Aurora A540I starts where most grills stop. Its three main burners are cast from 1/4-inch-thick 304 stainless steel — not stamped, not thin-walled — and each one puts out 31,000 BTUs for a combined 63,000 BTUs across 540 square inches of primary cooking real estate. Add the 240-square-inch warming rack and you have 780 total square inches to work with, which is enough to keep even an opinionated crowd fed without playing Tetris with your proteins.

This SKU (A540I-8EAN) ships complete with an 18,000 BTU stainless steel infrared backburner and a heavy-duty rotisserie kit including motor and spit rods — both items that are optional on other configurations. If you've been wanting a rotisserie setup without the hassle of sourcing components separately, this is the one to order.

The cooking grates are 304 stainless steel Diamond Sear Grids, machined in a trapezoid shape that maximizes contact and produces the kind of sear marks that make guests quietly reconsider their own backyard setups. Below the grates, 16-gauge stainless steel flavor grids catch drippings and return them as smoke rather than letting them disappear into a drip tray.

Hot surface ignition handles the lighting duties — no clicking, no piezo frustration, no ceremonial lighter-fluid rituals. The system requires a 120VAC / 15 AMP minimum GFCI outlet, so plan your outdoor electrical accordingly. Once the hood is up, two 12V / 10-watt halogen interior lights illuminate the cooking chamber, and the analog thermometer (polished stainless steel bezel, reads to 1,000°F) keeps you honest without requiring a separate probe. An optional digital thermometer with meat probe is available for those who prefer precision readouts.

The double-walled hood is spring-assisted and opens to 90 degrees, which means it stays where you put it. The back-lit comfort touch control knobs sit at a 41° angle — a small ergonomic detail that matters more than it sounds after the tenth time you're adjusting heat mid-cook. Overall dimensions are 33.5 inches wide by 32.5 inches deep by 26 inches tall, with a cut-out requirement of 32 inches wide by 19.5 inches deep by 11.5 inches tall. The grill weighs 190 pounds, so factor that into your installation planning.

An optional infrared searing burner can be added in the left-hand position, and the A540I is compatible with the full range of Fire Magic rotisserie accessories. If your enclosure is combustible, Fire Magic recommends insulating liner model #23130-50 (sold separately). Additional optional accessories include drip tray liners, a vinyl cover, and a 1-hour timer.

The exterior is 304 stainless steel throughout — the same alloy used in commercial kitchen equipment — which handles heat, moisture, and the general indignity of outdoor life without complaint.

• 63,000 BTU total output from three 1/4-inch-thick 304 cast stainless steel E-burners (31,000 BTU each)
• 540 sq. in. primary cooking surface plus 240 sq. in. warming rack (780 sq. in. total)
• Includes 18,000 BTU stainless steel infrared backburner and complete heavy-duty rotisserie kit with motor and spit rods
• 304 stainless steel Diamond Sear Grids in trapezoid shape for maximum searing contact
• Hot surface ignition — requires 120VAC / 15 AMP GFCI outlet
• Double-walled, spring-assisted hood opens to 90 degrees and holds position
• Two 12V / 10-watt halogen interior lights for low-light cooking
• Analog thermometer with polished stainless steel bezel reads up to 1,000°F; optional digital thermometer with meat probe available
• Back-lit comfort touch control knobs angled at 41° for ergonomic access
• 16-gauge stainless steel flavor grids recirculate drippings as smoke
• Optional infrared searing burner available in left-hand position
• Cut-out dimensions: 32" W x 19.5" D x 11.5" H; overall weight 190 lbs
• Insulating liner model #23130-50 recommended for combustible enclosures (sold separately)
