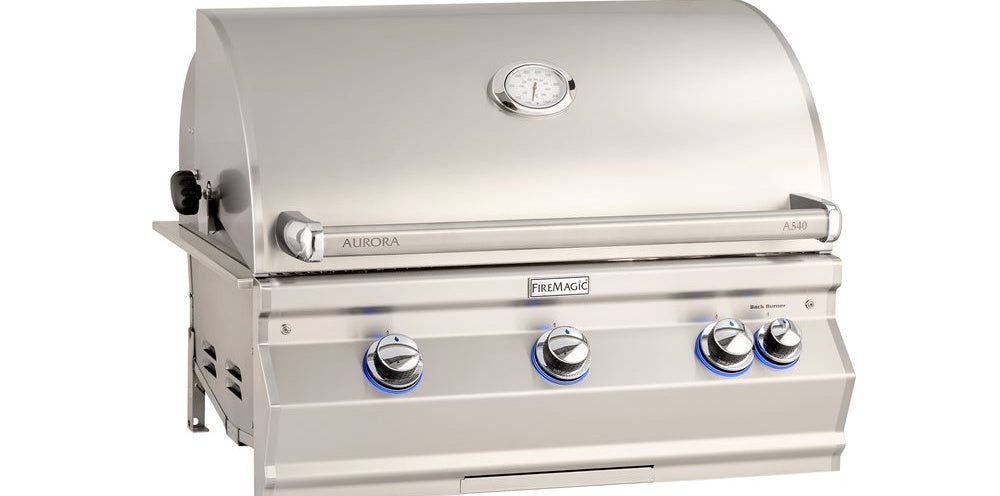

Fire Magic Aurora A540i 30-Inch Built-In Grill, 304 Stainless Steel

The Fire Magic Aurora A540i is built around three cast 304 stainless steel E-burners — each a full quarter-inch thick — producing a combined 63,000 BTU across a 540 square-inch Diamond Sear cooking surface. That cooking surface uses a trapezoid-shaped stainless steel grid design that maximizes contact and produces the kind of sear marks that make a statement without requiring any explanation.

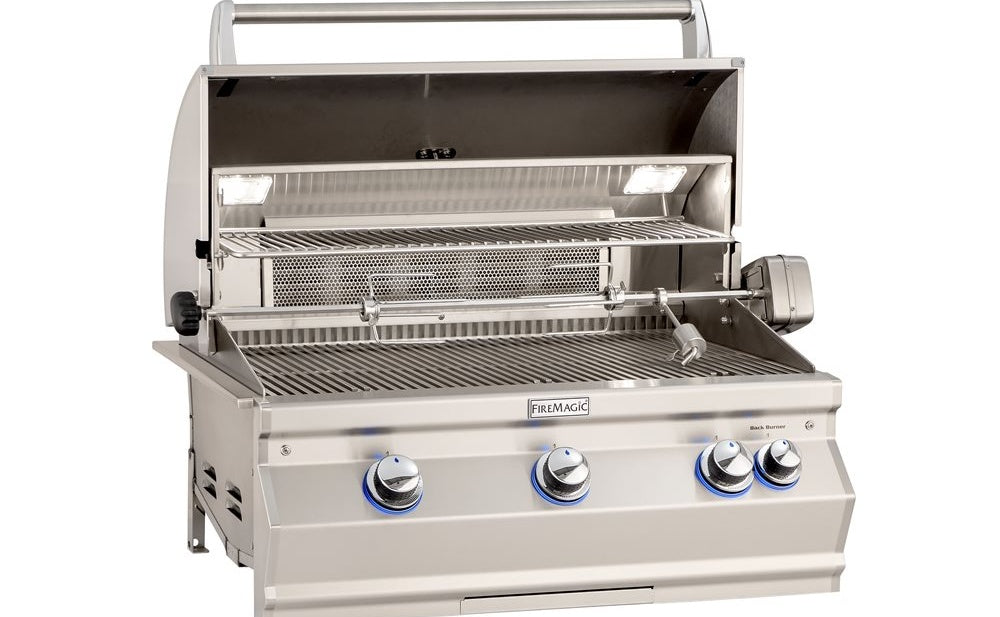

The double-walled, spring-assisted hood opens to a full 90 degrees and stays there, leaving both hands free for the actual business of cooking. An analog thermometer with angled bezel sits in the hood face, readable at a glance without having to crane your neck. Inside, halogen lighting means service doesn't stop when the sun does.

Hot surface ignition handles startup reliably, with a flash tube backup system so you're not left fumbling for a lighter when it matters. The comfort-touch control knobs are backlit with LED lighting — a small detail that makes a meaningful difference at dusk. The grill requires a standard 120 VAC connection for ignition and lighting, so plan your enclosure wiring accordingly.

At 190 lbs and with cutout dimensions of 32" W x 19.5" D x 11.5" H, this is a serious permanent installation designed for a properly built outdoor kitchen. The 304 stainless steel construction throughout — body, burners, and grids — is chosen for corrosion resistance and longevity, not just aesthetics.

The A540i is also a platform, not just a grill. It's compatible with an optional infrared burner upgrade, a single side burner, a backburner and rotisserie kit, and the Magic View Window insert for those who prefer to monitor without lifting the hood. For installations in combustible enclosures, the insulating liner (model 23150-52) is available as a required addition. Fire Magic griddle accessories designed for the Aurora series are also compatible.

The 240 square inches of warming rack area means sides and bread stay warm while the main event finishes — a practical feature that gets overlooked until the moment you actually need it. An optional 18,000 BTU backburner is available for rotisserie cooking.

The Aurora A540i is the kind of grill that earns its place in an outdoor kitchen not through flash, but through consistent, dependable performance built on real materials and thoughtful engineering.

• 540 sq in Diamond Sear cooking surface with trapezoid stainless steel grid design
• Three cast 304 stainless steel E-burners, 1/4-inch thick, 63,000 BTU combined
• Hot surface ignition (HSI) with flash tube backup for reliable every-time starts
• Double-walled spring-assisted hood opens to full 90 degrees
• Backlit LED comfort-touch control knobs for low-light usability
• Halogen interior lighting for nighttime cooking visibility
• Analog thermometer with angled bezel for at-a-glance temperature reads
• 240 sq in warming rack area
• 304 stainless steel construction throughout body, burners, and grids
• Compatible with optional infrared burner, side burner, rotisserie kit, and Magic View Window
• Insulating liner (model 23150-52) available for combustible enclosure installations
• Compatible with Fire Magic Aurora series griddle accessories
• Cutout dimensions: 32" W x 19.5" D x 11.5" H
• Requires 120 VAC for ignition and lighting
• Optional 18,000 BTU backburner available for rotisserie use
