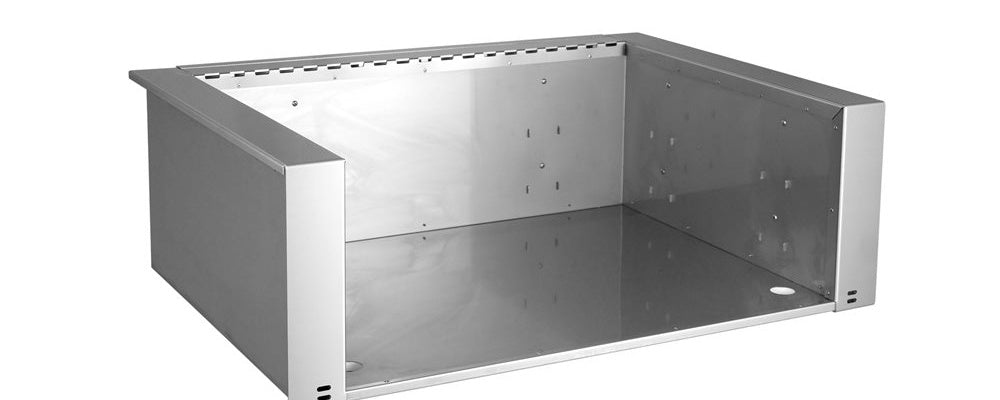

Fire Magic Aurora A530i Insulating Liner, 304 Stainless Steel
- Local delivery & pickup — Greater Nashville area
- In stock, ready to ship
- Inventory on the way
The Fire Magic Aurora A530i Insulating Liner (Part No. 23125-51) is the component that makes an outdoor kitchen truly built-in — not just dropped in and hoped for the best. Fabricated from 304 stainless steel and arriving pre-assembled, it creates the thermal separation needed to safely house the A530i grill within combustible structures like wood or composite framing.
The cut-out dimensions — 30 3/8" wide, 26 1/4" deep, and 12 1/4" tall — are engineered specifically for the Aurora A530i, so there's no guesswork about fit. This is a purpose-built part for a specific grill, not a universal approximation. If you're installing the A530i into a combustible enclosure, this liner isn't optional; it's what stands between a beautiful outdoor kitchen and a building-code conversation you'd rather not have.
A few things worth knowing before you order: this liner requires a non-combustible countertop as a condition of proper safety compliance. Stone, tile, concrete — any of those work. The liner handles the walls of the enclosure; the countertop handles the top. Together, they meet the installation requirements for combustible-structure builds.
The included hanger simplifies positioning during installation, giving you a stable reference point before everything gets set into place. Combined with the pre-assembled construction, this liner is designed to reduce the kind of on-site assembly that tends to extend projects well past the original weekend timeline.
If you're building an outdoor kitchen around the Fire Magic Aurora A530i and working with a wood-framed or composite island, this liner is the correct part — and the only listed compatible liner for this specific grill model in the Fire Magic lineup.
- 304 stainless steel construction for durability and heat resistance
- Designed exclusively for the Fire Magic Aurora A530i built-in grill
- Cut-out dimensions: 30 3/8" W × 26 1/4" D × 12 1/4" H
- Enables installation into combustible enclosures (wood, composite, and similar framing)
- Must be used with a non-combustible countertop for proper safety compliance
- Arrives pre-assembled — no on-site fabrication required
- Includes hanger for accurate positioning during installation
- Part Number: 23125-51
| Compatible Grill Model | Aurora A530i |
| Part Number | 23125-51 |
| Material | 304 stainless steel |
| Cut-Out Dimensions - Width | 30 3/8" |
| Cut-Out Dimensions - Depth | 26 1/4" |
| Cut-Out Dimensions - Height | 12 1/4" |
| Pre-Assembled | Yes |
| Includes Hanger | Yes |
