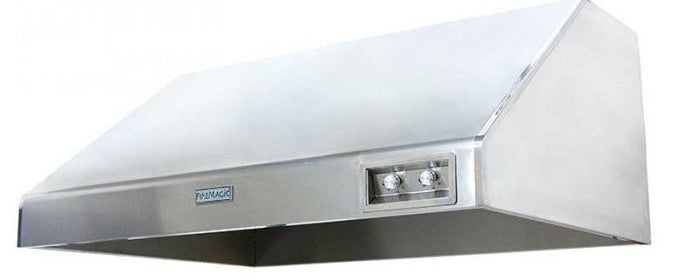

Fire Magic 60" Wall-Mount Vent Hood | 1200 CFM | 304 Stainless Steel

At 60 inches wide and rated for 1200 CFM of airflow, this Fire Magic wall-mount vent hood is sized for serious outdoor cooking — not the kind of weekend grilling that ends with one burger. Dual 600 CFM fans work in tandem to move smoke, grease, and heat efficiently, keeping your outdoor kitchen environment exactly as comfortable as the one you went through considerable expense to create.

The hood is constructed from brushed 304 stainless steel with seamless polished edges — the same grade of stainless used in commercial kitchen environments. At 170 pounds, it is a substantive installation, and the build quality reflects that weight honestly. Dimensions are 60" wide × 18" tall × 30" deep, with a 10" transition height built into the design.

Six anodized aluminum grease filters are included and are fully dishwasher safe — a small detail that matters considerably after a long season of cook sessions. Dual halogen under-mount lamps (120V / 50W per bulb) illuminate your grill surface directly, so low-light evening cooking doesn't require guesswork about doneness. The thermal safety sensor is a practical safeguard: if the ambient temperature beneath the hood reaches 140°F, the fans activate automatically, regardless of manual settings.

Venting configuration is convertible — the hood can be mounted with venting routed either vertically through the top or horizontally through the rear, giving installers meaningful flexibility depending on your outdoor kitchen's structural layout. Electrical requirements are 120VAC / 60Hz with a 15-amp minimum circuit and a GFCI outlet, drawing 1010 watts at full operation.

Compatibility is clearly defined: this hood installs over any Fire Magic or American Outdoor Grill and is rated to fit Fire Magic grills up to the E1060. It is also designed to work with the 60-VH-7-02 Spacer Insert and the 60-VH-7-DC Duct Cover — both sold separately — and those accessories are only compatible with VH-7 series hoods of matching width, so sizing alignment matters when configuring your full installation.

This is an outdoor vent hood built to the specifications of someone who takes their outdoor kitchen as seriously as their indoor one. The 60-VH-7 handles the volume, the heat, and the grease — reliably, and without complaint.

• 1200 CFM total extraction via dual 600 CFM blowers
• 60" wide × 18" tall × 30" deep; 10" transition height
• Brushed 304 stainless steel construction with seamless polished edges
• Six anodized aluminum grease filters — dishwasher safe
• Dual halogen under-mount lamps, 120V / 50W per bulb
• Thermal safety sensor auto-activates fans at 140°F
• Convertible venting: top-vent (vertical) or rear-vent (horizontal)
• Wall-mount installation; 120VAC / 60Hz / 15A minimum / GFCI required
• 1010 watts power consumption at full operation
• 170 lb. unit weight
• Fits Fire Magic grills up to the E1060
• Installs over any Fire Magic or American Outdoor Grill
• Compatible with 60-VH-7-02 Spacer Insert and 60-VH-7-DC Duct Cover (sold separately)
