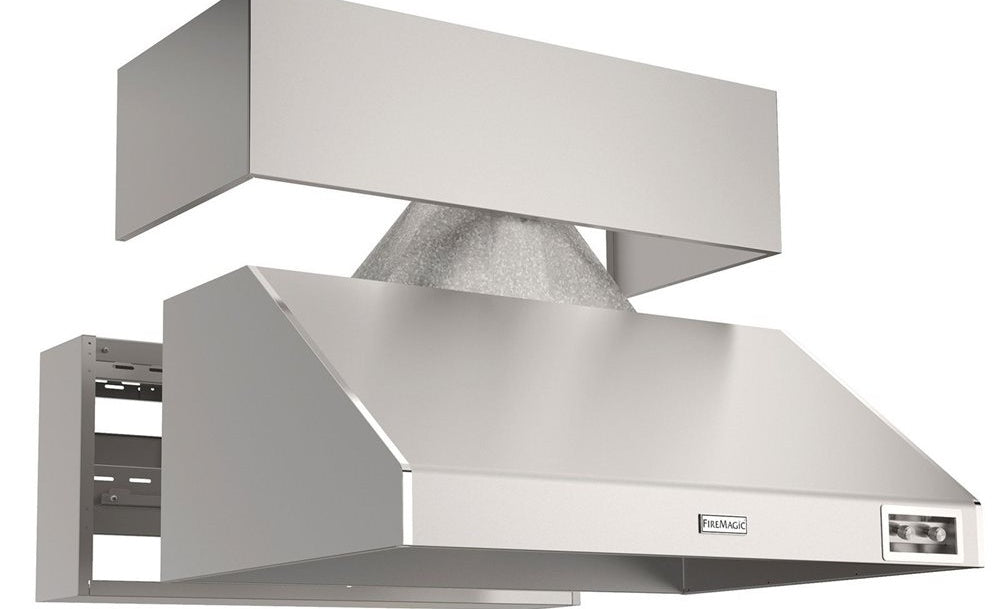

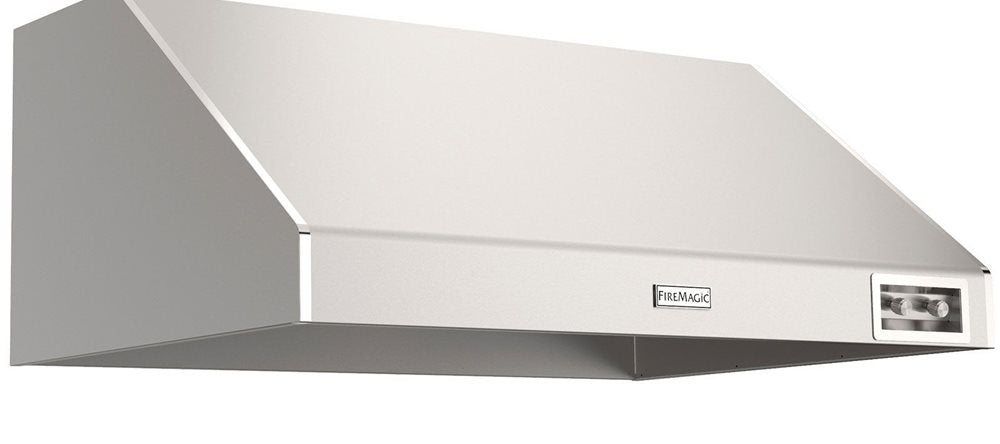

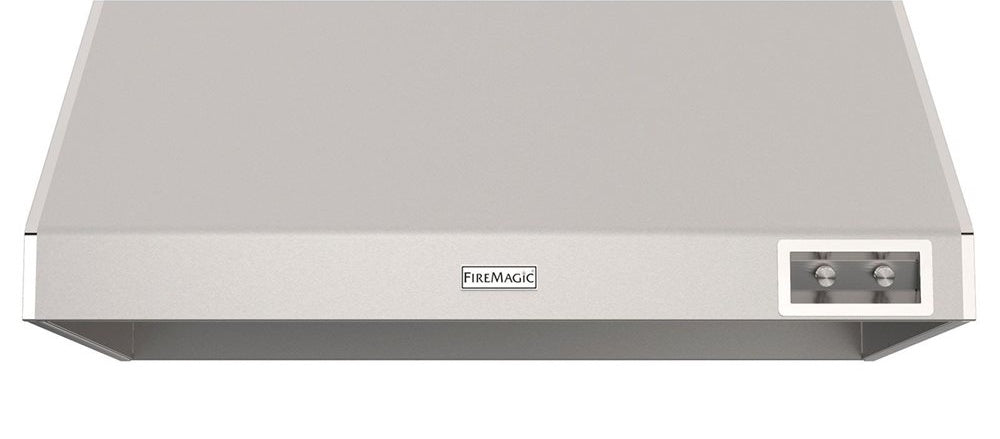

Fire Magic 48-Inch Outdoor Vent Hood, 1200 CFM, 304 Stainless Steel

At 48 inches wide and constructed from 304 stainless steel, this Fire Magic outdoor vent hood is purpose-built to handle serious grilling sessions without flinching. The dual-fan blower system delivers a combined 1200 CFM (600 CFM per fan), which means smoke, grease vapor, and the occasional culinary miscalculation all get routed out efficiently — whether through vertical or horizontal venting via 10-inch round galvanized single-wall duct piping.

The built-in thermal safety sensor adds a layer of intelligent protection: if temperatures reach 140°F, the hood activates automatically. It's the kind of feature that quietly does its job in the background while you focus on the grill. Four anodized aluminum grease filters catch what the fans redirect, and since they're dishwasher safe, maintenance stays low-effort.

Dual halogen under-mount lamps illuminate your cooking surface once the sun goes down, so you're not relying on ambient light or guesswork to know when your sear is ready. The 18-inch height and 30-inch depth are designed to work proportionally over compatible Fire Magic grills, and a 10-inch transition height accommodates the connection to ductwork without requiring a contractor to get creative.

At 164 pounds, this hood is a substantial installation — wall-mount only, outdoors, and requiring a dedicated GFCI outlet running 120VAC/60Hz at a minimum of 15 AMPs. Total power consumption sits at 1010 watts, so a properly spec'd circuit matters here.

For installations requiring additional clearance or duct routing flexibility, this hood is compatible with the Fire Magic Vent Hood Spacer Insert (48-VH-7-02) and the Fire Magic Vent Hood Duct Cover Insert (48-VH-7-DC), both sold separately. It is specifically designed for Fire Magic grills up to the A790 and E790 models — if you're running one of those rigs, this hood was made with your setup in mind.

In short: heavy-gauge stainless construction, serious airflow capacity, smart thermal activation, and genuine compatibility with your Fire Magic cooking suite. The details are all accounted for.

• 1200 CFM total airflow via dual 600 CFM fans
• 48-inch width designed for Fire Magic A790 and E790 grills
• 304 stainless steel construction for long-term outdoor durability
• Thermal safety sensor auto-activates at 140°F
• Vertical or horizontal venting via 10-inch round galvanized duct
• Four anodized aluminum grease filters — dishwasher safe
• Dual halogen under-mount lamps for nighttime visibility
• 18"H x 30"D x 48"W with 10-inch transition height
• Outdoor wall-mount installation only
• Requires 120VAC/60Hz, 15 AMP minimum with GFCI outlet
• 1010 watts total power consumption
• Compatible with Fire Magic Spacer Insert (48-VH-7-02) and Duct Cover Insert (48-VH-7-DC)
• Unit weight: 164 lbs
