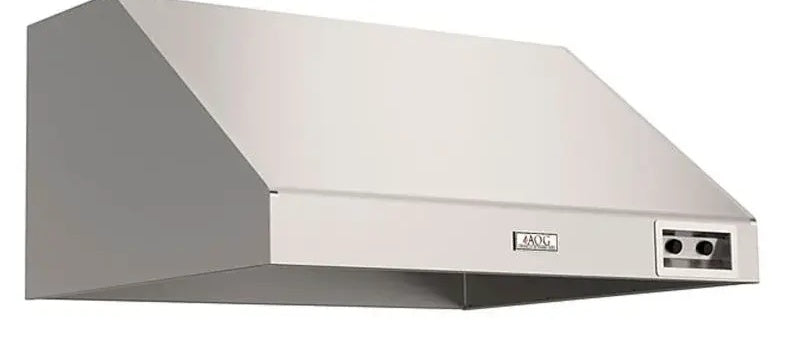

American Outdoor Grill 36" Vent Hood, 1000 CFM, 304 Stainless Steel

At 1000 CFM and 36 inches wide, this American Outdoor Grill vent hood means business. Dual fans work in tandem to pull smoke, heat, and grease-laden air away from your cooking zone — keeping your outdoor kitchen comfortable even when you're running the grill hard. It's engineered specifically for wall mounting above any AOG built-in grill, so fitment is a given rather than a guessing game.

The entire housing is fabricated from 304 stainless steel, the same grade used throughout AOG's built-in lineup and the right call for an outdoor installation where moisture, heat cycles, and UV exposure are facts of life rather than edge cases. At 36" wide × 18" tall × 30" deep, it provides meaningful coverage without overwhelming the surrounding cabinetry.

Venting is configurable at installation: exhaust can be routed vertically through the overhead structure or horizontally through a rear wall, giving your contractor flexibility to work with whatever your outdoor kitchen layout demands. Once it's running, on-demand push-button controls keep operation simple — separate buttons for the fan and lights mean you're never hunting through a menu to turn on the hood at a critical moment.

Dual halogen under-mount lamps (120V / 50W each) illuminate the cooking surface directly, which turns out to be genuinely useful when you're trying to read a sear at dusk. The thermal safety sensor activates at 140°F — a quiet safeguard that monitors operating temperatures without requiring any input from you.

Grease management is handled by anodized aluminum filters that pull out and go straight into the dishwasher. It's the kind of detail that sounds minor until you've spent time scrubbing a filter by hand — and then it sounds excellent. Electrical requirements are 120VAC / 15 AMP minimum / 60 Hz on a GFCI outlet, drawing 1,010 watts at full load.

This hood is rated for outdoor use only and must be wall mounted. It is designed for use with all American Outdoor Grill built-in models.

• 1000 CFM dual-fan ventilation engineered for serious outdoor cooking sessions
• 36"W × 18"H × 30"D — sized to cover AOG's full 36" built-in grill lineup
• 304 stainless steel construction rated for permanent outdoor installation
• Convertible venting: routes exhaust vertically or horizontally at installation
• Thermal safety sensor activates automatically at 140°F
• Dual halogen under-mount lamps (120V / 50W each) for direct cooking surface illumination
• Anodized aluminum grease filters are dishwasher-safe for easy maintenance
• Simple on-demand push-button controls for fan and lights — operated independently
• Requires 120VAC / 15 AMP min. / 60 Hz / GFCI outlet; draws 1,010 watts
• Wall mount only; designed for use with all AOG built-in grills
• Outdoor use only
